Supply

PCI-DDC is fed with 5v. RCUBE is fed with 3.3v. PCI-DDC is compatible with RCUBE since RCUBE may accept both 5v and 3.3v for I/O signal and PCI-DDC accepts 3.3v signals.

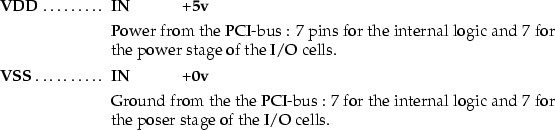

\begin{mydescription} \item[VDD] \makebox[1.5cm][l]{\bf IN} \makebox[1.5cm][l]{\... ...e internal logic and 7 for the poser stage of the I/O cells.\end{mydescription}
