Overview

PCI-DDC has 92 logic pins and 28 supply pins in a Quad flat Pack (QFP) 120 pins package.

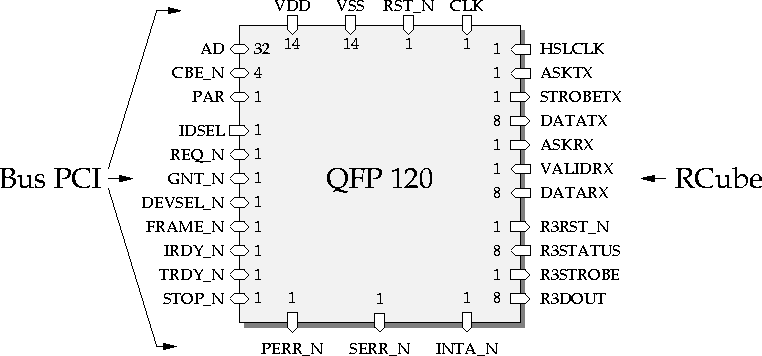

Figure: PCI-DDC pin overview
\begin{figure} \center\leavevmode \psfig {file=usage/interface.eps,width=\sheetwidth}\end{figure}

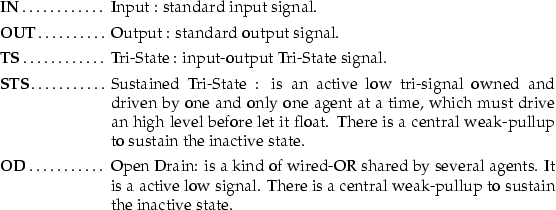

The signal electric type are those defined in PCI specification 2.1 page 8, that are:
\begin{mydescription} \item[IN] \id{Input} : standard input signal. \item[OUT] ... ...There is a central weak-pullup to sustain the inactive state.\end{mydescription}
Note that the active low-signal names are suffixed with the _N chars, rather than the # char (PCI specification) because the # char is not allowed by our modeling language (VHDL). Assert a signal means drive the active state, that is 0 for an _N suffixed signal else 1. The following table gives a signal overview. Signals are detailed in sections below.
  =4.5pt

Table: PCI-DDC pin list
AD (31 downto 0) TS Address and Data (multiplexed on PCI bus) p. [*]
CBE_N (3 downto 0) TS Commands and Byte Enables
PAR TS Even PARity on AD and CBE_N
IDSEL IN Initialization Device SELect used to configure PCI-DDC p. [*]
REQ_N TS PCI-DDC REQuest to the bus arbiter
GNT_N IN GraNT signal from the bus arbiter
DEVSEL_N STS PCI DEVice (memory) SELect
FRAME_N STS indicate the beginning and duration of a PCI access
IRDY_N STS PCI Initiator ReaDY
TRDY_N STS PCI Target ReaDY
STOP_N STS current PCI target STOP request
CLK IN 33Mhz PCI clock p. [*]
RST_N IN PCI reset signal
PERR_N STS PCI data Parity ERRor report
SERR_N STS PCI address and System ERRor report
INTA_N OD PCI interrupt signal
HSLCLK IN 80Mhz RCUBE clock p. [*]
ASKTX IN flux control: network asks for data from PCI-DDC
STROBETX_N OUT transmitted data strobe
DATATX (8 downto 0) OUT transmitted data to the network
ASKRX OUT flux control: PCI-DCC asks for data from the network
VALIDRX IN received data validity signal
DATARX (8 downto 0) IN received data from the network
R3RST_N OUT RCUBE reset signal p. [*]
R3STATUS(7 downto 0) IN RCUBE link status
R3STROBE OUT RCUBE configuration data strobe
R3DOUT(7 downto 0) OUT RCUBE configuration data
TEST IN Test mode p. [*]
VDD IN Power (+5v) p. [*]
VSS IN Ground (0v)
