The Serialization/Deserialization Operator

The serialization/deserialization and clock recovery macro-cell has been developed by BULL S.A. This operator uses a standard .5 micron technology, and can thereafter be integrated at low cost. Furthermore, the macro-cell does not require any external component, the HS-Link is directly connected to the circuit's pin.

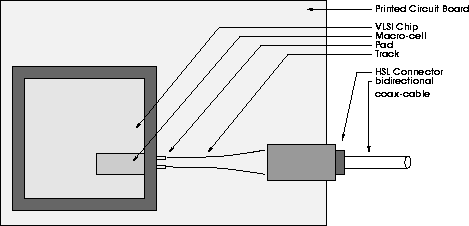

On the figure 4 is presented the complete integration of a HS-Link, from the silicon to the physical link.

**Figure 4:** Macro/Circuit/Board/Connecxion Integration
$\begin{figure} \center \leavevmode \epsfysize=5cm \epsfbox{macro.eps}\end{figure}$
